DC Engineering is the leading manufacturer, supplier, and stockist of Fasteners. These bolts are Commonly used for joining two or more objects together. These bolts are applicable in various industries. The chemical composition of these bolts is strong and malleable. These are made with extraordinary material and high-quality raw material.
DC Engineering is the leading manufacturer, supplier, and stockist of Fasteners. These bolts are Commonly used for joining two or more objects together. These bolts are applicable in various industries. The chemical composition of these bolts is strong and malleable. These are made with extraordinary material and high-quality raw material.
Largest Inventory
Customer Support
On Time Deliveries
ISO 9001 : 2015

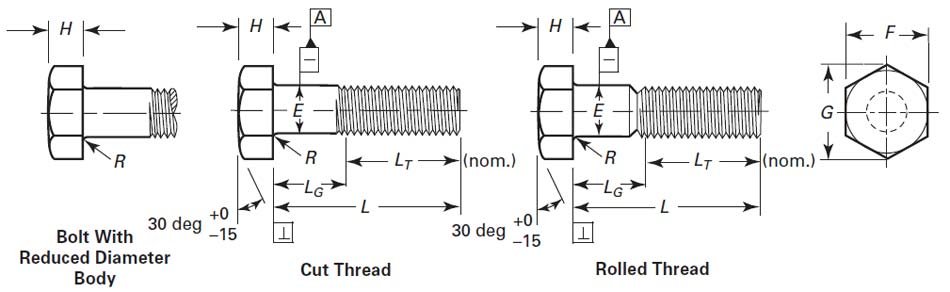

ASME B18.2.1 Fasteners Dimension :-
| Nomianal Size or Basic product Diameter | Full-Size Body Diameter, E | Width Across Flats, F | Width Across Corners, G | Head Height, H | Radius of Fillet, R | Thread Length for Bolt Lengths, LT | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 in. & Shorter | Over 6 in. | |||||||||||||
| Max. | Min. | Basic | Max. | Min. | Max. | Min. | Basic | Max. | Min. | Max. | Min. | Nom. | Nom. | |
| 1/4 0.2500 |
0.260 | 0.237 | 7/16 | 0.438 | 0.425 | 0.505 | 0.484 | 11/64 | 0.188 | 0.150 | 0.03 | 0.01 | 0.750 | 1.000 |
| 5/16 0.3125 |
0.324 | 0.298 | 1/2 | 0.500 | 0.484 | 0.577 | 0.552 | 7/32 | 0.235 | 0.195 | 0.03 | 0.01 | 0.875 | 1.125 |
| 3/8 0.3750 |
0.388 | 0.360 | 9/16 | 0.562 | 0.544 | 0.650 | 0.620 | 1/4 | 0.268 | 0.226 | 0.03 | 0.01 | 1.000 | 1.250 |
| 7/16 0.4375 |
0.452 | 0.421 | 5/8 | 0.625 | 0.603 | 0.722 | 0.687 | 19/64 | 0.316 | 0.272 | 0.03 | 0.01 | 1.125 | 1.375 |
| 1/2 0.5000 |
0.515 | 0.482 | 3/4 | 0.750 | 0.725 | 0.866 | 0.826 | 11/32 | 0.364 | 0.302 | 0.03 | 0.01 | 1.250 | 1.500 |
| 5/8 0.6250 |
0.642 | 0.605 | 15/16 | 0.938 | 0.906 | 1.083 | 1.033 | 27/64 | 0.444 | 0.378 | 0.06 | 0.02 | 1.500 | 1.750 |
| 3/4 0.7500 |
0.768 | 0.729 | 1 1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 1/2 | 0.524 | 0.455 | 0.06 | 0.02 | 1.750 | 2.000 |
| 7/8 0.8750 |
0.895 | 0.852 | 1 5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 37/64 | 0.604 | 0.531 | 0.06 | 0.02 | 2.000 | 2.250 |
| 1 1.0000 |
1.022 | 0.976 | 1 1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 43/64 | 0.700 | 0.591 | 0.09 | 0.03 | 2.250 | 2.500 |
| 1 1/8 1.1250 |
1.149 | 1.098 | 1 11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 3/4 | 0.780 | 0.658 | 0.09 | 0.03 | 2.500 | 2.750 |
| 1 1/4 1.2500 |
1.277 | 1.223 | 1 7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 27/32 | 0.876 | 0.749 | 0.09 | 0.03 | 2.750 | 3.000 |
| 1 3/8 1.3750 |
1.404 | 1.345 | 2 1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 29/32 | 0.940 | 0.810 | 0.09 | 0.03 | 3.000 | 3.250 |
| 1 1/2 1.5000 |
1.531 | 1.470 | 2 1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1/ | 1.036 | 0.902 | 0.09 | 0.03 | 3.250 | 3.500 |
| 1 5/8 1.6250 |
1.658 | 1.591 | 2 7/16 | 2.438 | 2.356 | 2.815 | 2.616 | 1 3/32 | 1.116 | 0.978 | 0.09 | 0.03 | 3.500 | 3.750 |
| 1 3/4 1.7500 |
1.785 | 1.716 | 2 5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1 5/32 | 1.196 | 1.054 | 0.12 | 0.04 | 3.750 | 4.000 |
| 1 7/8 1.8750 |
1.912 | 1.839 | 2 13/16 | 2.812 | 2.719 | 3.248 | 3.099 | 1 1/4 | 1.276 | 1.130 | 0.12 | 0.04 | 4.000 | 4.250 |
| 2 2.000 |
2.039 | 1.964 | 3 | 3.000 | 2.9000 | 3.464 | 3.306 | 1 11/32 | 1.388 | 1.175 | 0.12 | 0.04 | 4.250 | 4.500 |
| 2 1/4 2.2500 |
2.305 | 2.214 | 3 3/8 | 3.375 | 3.262 | 3.897 | 3.719 | 1 1/2 | 1.548 | 1.327 | 0.19 | 0.06 | 4.750 | 5.000 |
| 2 1/2 2.5000 |
2.559 | 2.461 | 3 3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 1 21/32 | 1.708 | 1.479 | 0.19 | 0.06 | 5.250 | 5.500 |
| 2 3/4 2.7500 |
2.827 | 2.711 | 4 1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 1 13/16 | 1.869 | 1.632 | 0.19 | 0.06 | 5.750 | 6.000 |
| 3 3.000 |
3.081 | 2.961 | 4 1/2 | 4.500 | 4.350 | 5.196 | 4.959 | 2 | 2.060 | 1.815 | 0.19 | 0.06 | 6.250 | 6.500 |
| 3 1/4 3.2500 |
3.335 | 3.210 | 4 7/8 | 4.875 | 4.712 | 5.629 | 5.372 | 2 3/16 | 2.251 | 1.936 | 0.19 | 0.06 | 6.750 | 7.000 |
| 3 1/2 3.5000 |
3.589 | 3.461 | 5 1/4 | 5.250 | 5.075 | 6.062 | 5.786 | 2 5/16 | 2.380 | 2.057 | 0.19 | 0.06 | 7.250 | 7.500 |
| 3 3/4 3.7500 |
3.858 | 3.726 | 5 5/8 | 5.625 | 5.437 | 6.495 | 6.198 | 2 1/2 | 2.572 | 2.241 | 0.19 | 0.06 | 7.750 | 8.000 |
| 4 4.000 |
4.111 | 3.975 | 6 | 6.000 | 5.800 | 6.928 | 6.612 | 2 11/16 | 2.764 | 2.424 | 0.19 | 0.06 | 8.250 | 8.500 |
Applications & Operations
We at DC Engineering make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers. DC Engineering is one of the most trusted manufacturers and suppliers of fasteners and bolts which are applicable in various industries.
- Gas Processing Industries
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Chemical Industries
- Oil & Gas Industries
- Fertilizers Industries
- Sugar Industries
Experimentation & Testing
DC Engineering is known for its accurate and perfect dimensions. We at DC engineering thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.
- Impact Analysis
- Eddy Current Examining
- Power Generation Industries
- Hydrostatic Analysis
- Prompt Test
- Positive Material Recognition
- Large-Scale Test
- Pitting Protection Test
Packaging & Dispatching
DC Engineering uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:
- Wooden Boxes
- Wooden Crates
- Wooden Pallets
- Carton Boxes
- Shrink-Wrapped
- Bubble Wrap Packing Material
- Laminated & Metallized Films
- Wooden or Plastic Crates
