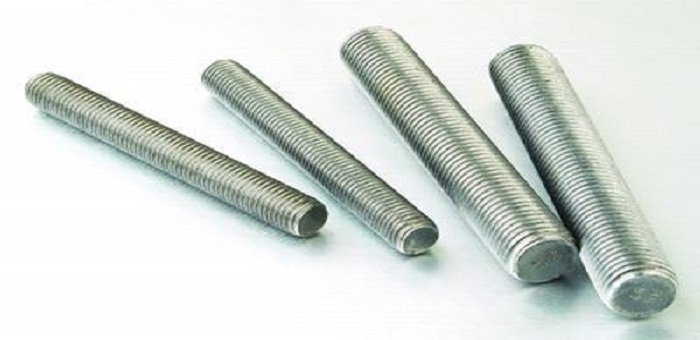

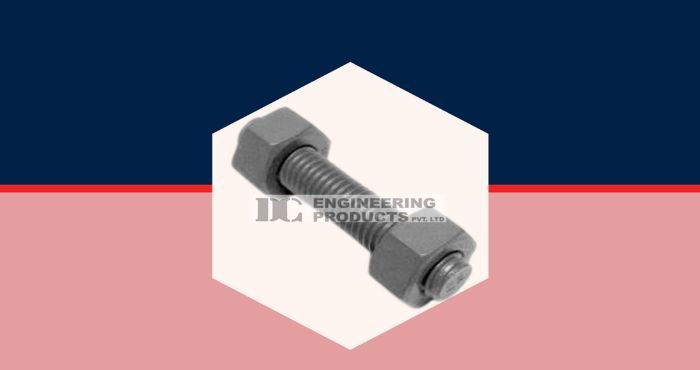

We offer SS 316 Bolts. DC Engineering is dedicated to supplying and developing successful STAINLESS STEEL 316/316L/316TI Studs also at effective prices. We have decades of expertise working with skilled staff who are actively involved throughout the full process. We also have several test procedures in which we pass these products for high satisfaction from the customers.
SS 316 Stud Bolts is also a great stainless steel for high temperature, high corrosion atmosphere and therefore generally get benefit by using across marine environments. The SS 316 Stud bolts are also resistant to carbide precipitation and usually also used in high temperature and stress range. The corrosion resistance property of the stainless steel 316L studs bolts is almost similar to SS 304. SS 304 Stud Bolts offer high resistance to oxidation corrosion by the formation of a passivated oxide layer that forms when chromium comes in contact with air by showing self repairing property in presence of moisture in atmosphere. 316Ti Stud Bolts offer customization that means customers can select above grades on the bases of content balance, carbon content can be adjusted as required by the clients. The higher carbon proportion leads the name to the 316L that has greater carbon proportion, and for the lower carbon content customers may get the 316H stainless steel stud bolts.
SS 304 Stud Bolts are lower carbon version grade bolts that are popularly demanded by it’s intergranular corrosion resistance even better than some of the higher carbon version of SS 304 Stud bolts.
The manufacturing processes can be passed from few designations for the assurance namely, as cold heading, wire drawing, heat treatment, insert tapping, surface piating, deep inspection, packing. The delivery of our regular products are generally get done in up to 15 days or earlier, custom products may take different time periods according to the special requirements of the clients.
Largest Inventory
Customer Support
On Time Deliveries
ISO 9001 : 2015
Specification
| Specification | ASTM A 193 ASME SA 193 |
|---|---|
| Stud Bolt size | M02 to M33, Custom Sizes |
| Stud Bolts Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of Stud Bolts | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form of Stud Bolts | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Popular Types of Stud Bolt | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Stud Bolts | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Ptfe Coated Stud Bolts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Stud Bolts finishing |
Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
Equivalent Grades
| AISI Grade Equivalent | JIS Equivalent | Stainless Steel Notation | EN/DIN Numerical Equivalent | UNS designation |
EN/DIN Symbolical Equivalent |
| AISI 316 | SUS316 | SS 316 | EN 1.4401 | UNS S31600 | X5CrNiMo17-12-2 |
| AISI 316L | SUS316 L | SS 316 L | EN 1.4404 | UNS S31603 | X2CrNiMo17-12-2 |
| AISI 316Ti | SUS316 Ti | SS 316 Ti | EN 1.4571 | UNS S31635 | X6CrNiMoTi17-12-2 |
Chemical Composition
| Element | Ni | C | Mn | P | S | Si | Cr | Mo |
| SS 316 | 10 – 14 | 0.08 | 2.0 max | 0.045 max | 0.030 max | 0.75 max | 16 – 18 | 2 – 3 |
| SS 316L | 10 – 14 | 0.01 max | 2.0 max | 0.045 max | 0.030 max | 1.00 max | 16 – 18 | 2 – 3 |
| SS 316Ti | 10 – 14 | 0.03 max | 2.0 max | 0.045 max | 0.030 max | 0.75 max | 16 – 18 | 2 – 3 |
Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316L/ SS 316Ti | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Applications & Operations
We at DC Engineering make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers. DC Engineering is one of the most trusted manufacturers and suppliers of fasteners and bolts which are applicable in various industries.
- Gas Processing Industries
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Chemical Industries
- Oil & Gas Industries
- Fertilizers Industries
- Sugar Industries
Experimentation & Testing
DC Engineering is known for its accurate and perfect dimensions. We at DC engineering thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.
- Impact Analysis
- Eddy Current Examining
- Power Generation Industries
- Hydrostatic Analysis
- Prompt Test
- Positive Material Recognition
- Large-Scale Test
- Pitting Protection Test
Packaging & Dispatching
DC Engineering uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:
- Wooden Boxes
- Wooden Crates
- Wooden Pallets
- Carton Boxes
- Shrink-Wrapped
- Bubble Wrap Packing Material
- Laminated & Metallized Films
- Wooden or Plastic Crates
