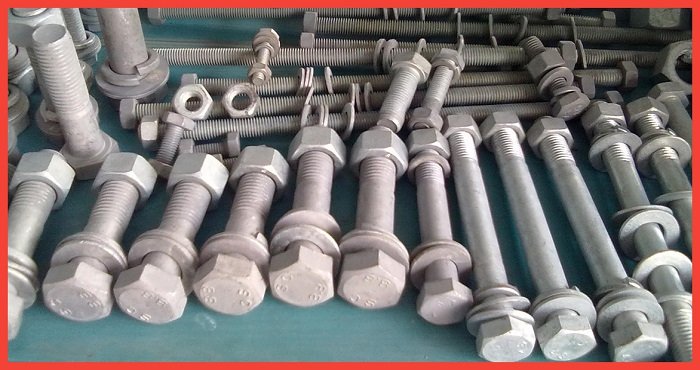

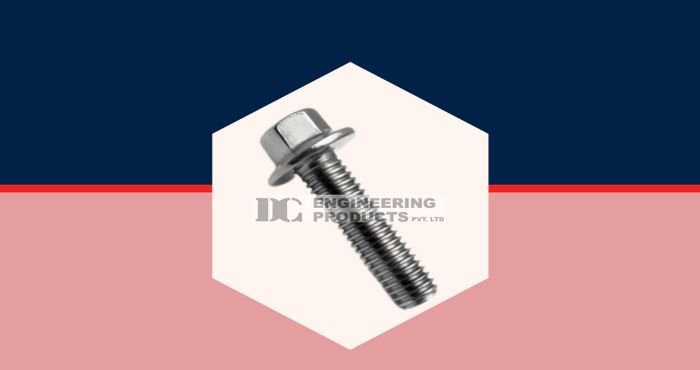

DC are the manufacturer, supplier, and stockist of stainless steel 321 & 321 H bolts. These bolts are enriched with high strength and flexibility. Stainless steel 321 & 321 H is an advanced grade with extraordinary properties and characteristics. Grade 321 head Bolt is made from austenitic steel; hence it is also called an austenitic grade. Stainless steel 321 & 321 H grade has magnetic properties. These stainless steel 321 & 321 H are enriched with other great qualities and features.
Grade 321 & 321 H is manufactured using an excellent combination of tensile elements such as manganese, chromium, and nickel. Stainless steel 321H bolts also includes silicon, phosphorus, and carbon in its composition. Stainless steel bolts are commonly used for joining two or more objects together.
Largest Inventory
Customer Support
On Time Deliveries
ISO 9001 : 2015
Specification
| Specifications | ASTM A193 ASME SA193 |
| Standard | DIN, ASTM, BS and all International Standards |
| Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Nickel Alloy 200 Fasteners Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
| SS 321H | 1.4878 | S32109 | SUS 321H | X12CrNiTi18-9 |
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 0.10 max | 9.00 - 12.00 | 5(C+N) – 0.70 max |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Stainless Steel 321 Hex Bolt Dimension
SS 321 Hex Bolt Dimension Table in Saudi Arabia, UNS S32100 Hex Bolt dimension chart in UAE, M12 Size Heavy Hex bolt Chart in Singapore, Size M16 Stud Bolt Dimensional Chart in KSA.
NOMINAL SIZE (D) |
BODY DIAMETER |
HEAD THICKNESS ASTM A193 |
ACROASTM A193 THE FLATS |
ACROASTM A193 CORNERS |
||||
|---|---|---|---|---|---|---|---|---|
D (MAX) |
D (MIN) |
H (MAX) |
H (MIN) |
F (MAX) |
F (MIN) |
C (MAX) |
C (MIN) |
|
m10 |
10.00 |
9.78 |
6.63 |
6.17 |
17.00 |
15.73 |
18.48 |
17.77 |
m12 |
12.00 |
11.73 |
7.76 |
4.24 |
19.00 |
17.73 |
20.78 |
20.03 |
m14 |
14.00 |
13.73 |
9.09 |
8.51 |
22.00 |
20.67 |
24.25 |
23.35 |
m16 |
16.00 |
15.73 |
10.32 |
9.68 |
24.00 |
23.67 |
27.71 |
26.75 |
m20 |
20.00 |
19.67 |
12.88 |
12.12 |
30.00 |
29.16 |
34.64 |
32.65 |
m24 |
24.00 |
23.67 |
15.44 |
14.56 |
36.00 |
35.00 |
41.57 |
39.55 |
m30 |
30.00 |
29.67 |
19.48 |
17.92 |
46.00 |
45.00 |
53.12 |
50.85 |
m36 |
36.00 |
35.61 |
23.38 |
21.63 |
55.00 |
53.80 |
63.51 |
60.79 |
m42 |
42.00 |
41.38 |
26.97 |
25.03 |
65.00 |
62.90 |
75.06 |
71.71 |
m48 |
48.00 |
47.38 |
31.07 |
28.93 |
75.00 |
72.60 |
86.60 |
82.76 |
m56 |
56.00 |
55.26 |
36.2 |
33.80 |
85.00 |
82.20 |
98.15 |
93.71 |
m64 |
64.00 |
63.26 |
41.32 |
38.68 |
65.00 |
91.80 |
109.70 |
104.65 |
m72 |
72.00 |
71.26 |
46.45 |
43.55 |
105.00 |
101.40 |
121.24 |
115.60 |
m80 |
80.00 |
79.26 |
51.58 |
48.42 |
115.00 |
111.00 |
132.72 |
126.54 |
m90 |
90.00 |
89.13 |
57.74 |
54.26 |
130.00 |
125.50 |
150.11 |
143.07 |
m100 |
90.00 |
99.13 |
63.9 |
60.10 |
145.00 |
140.00 |
167.43 |
159.60 |
Note:- Following measurements are in millimeters

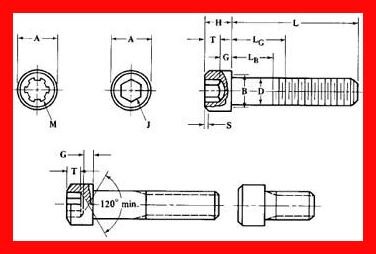

Stainless Steel 321 Socket Head Cap Screw Dimension Table
Nominal |
Thread. |
Hex Socket Size |
Body diameter and Head height |
Head Dia |
Soc. length |
||
Size |
Pitch |
Max |
Min |
Max |
Min |
||
J |
D /H |
A |
K |
||||
M3 |
0.5 |
2.50 |
3.00 |
2.86 |
5.50 |
5.20 |
1.3 |
M4 |
0.70 |
3.00 |
4.00 |
3.82 |
7.00 |
6.64 |
2.00 |
M5 |
0.8 |
4.00 |
5.00 |
4.82 |
8.50 |
8.14 |
2.70 |
M6 |
1.0 |
5.00 |
6.00 |
5.82 |
10.00 |
9.64 |
3.30 |
M8 |
1.25 |
6.00 |
8.00 |
7.78 |
13.00 |
12.57 |
4.3 |
M10 |
1.5 |
8.00 |
10.00 |
9.78 |
16.00 |
15.57 |
5.50 |
M12 |
1.75 |
10.00 |
12.00 |
11.73 |
18.00 |
17.57 |
6.60 |
M16 |
2.0 |
14.00 |
16.00 |
15.73 |
24.00 |
23.48 |
8.80 |
M20 |
2.5 |
17.00 |
20.00 |
19.67 |
30.00 |
29.48 |
10.70 |
M24 |
3.0 |
19.00 |
24.00 |
23.67 |
36.00 |
35.38 |
12.90 |
