The Duplex & Super Duplex Steel Nuts have great yield strength. This yield strength is two times that of the annealed yield strength of typical austenitic stainless steels. The chemical composition of Duplex steel consists of ferrous and nickel, along with chromium having an austenitic composition at room temperature.

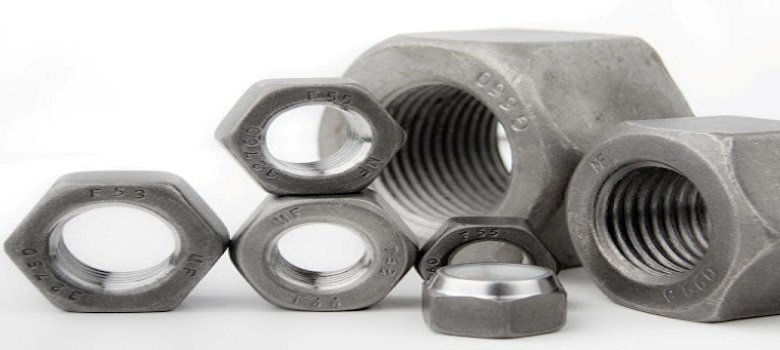

DUPLEX & SUPER DUPLEX STEEL NUTS

The Duplex & Super Duplex S32205 Steel Nuts are used in a wide range of applications. These include industries such as the chemical industry, power industry, and various other industries as well. The Duplex Steel UNS S31803 Nuts have great resistance towards corrosion and the damages that could occur because of corrosion. They also have good aqueous corrosion resistance. Duplex Steel UNS S32205 Nuts is very ductile. They also have good characteristics of being weldable.


Largest Inventory


Customer Support


On Time Deliveries


ISO 9001 : 2015

Specification :-

Grades Duplex Steel UNS S31803 / S32205
Super Duplex Steel 2507 (UNS S32750/S32760)
Standard ANSI – American National Standards Institute
  • UNS Stud Nuts length are defined in ASME B16.5 standard
  • ANSI B 28.2.4 1M
  • ANSI B 18.2.4 2M
  • ASME B18.5
  • Nuts are defined in ASME B18.2.2
  • DIN:DIN 933, DIN 931, DIN 970, DIN 934
  • DIN 580 UNS S31803 Eye Nuts
  • UTS – Unified Thread Standard : UNF, NPT, NPTF, UNS, UNC, UNEF
  • ISO – International Organization for Standardization ISO 4033, : ISO 4032, JIS standards
Size M10, M4, M16, M36 M2.5, M6, M30, M12, M8, M14, M2, M3, M20, M24, M5 to M160 | Custom Sizes
Length 3 mm to 200 mm | Custom Sizes
Dimensions DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Form Hex, Threading, Square, Round as per Gauge Etc.
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or
vertically
Threads available UNF, BSW, BSF, METRIC, UNC, or as required
Threads
Configuration
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Test Certificate As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Raw materials Source JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc.
Packing IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Surface Coating Cadmium Coating
Hot Dipped Galvanizing Coating
Ptfe Coated Nickel Alloy 200 Fasteners
Phosphate Coating
Teflon Coating
Xylon Coating
Zinc Coating

Equivalent Grades

STANDARD UNS WERKSTOFF NR.
Duplex S31803 S31803 1.4462
Duplex S32205 S32205 1.4462
Super Duplex S32750 S32750 1.4410
Super Duplex S32760 S32760 1.4410

Chemical Composition

Grade C N P Si Mn Mo Fe Cr S Ni
S31803 / S32205 1.0 max 0.03 max 0.02 max 2.0 max 3.0 – 3.5 22.0 – 23.0 0.03 max 4.5 – 6.5 0.14 – 0.2 Bal
S32750 / S32760 0.030 max 0.24 - 0.32 0.035 max 0.80 max 1.20 ma 3.0 – 5.0 - 24.0 – 26.0 0.020 max 6.00 - 8.00

Mechanical Properties

Grade Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
S31803 / S32205 7.8 g/cm3 1350 °C (2460 °F) Psi – 80000 , MPa – 550 Psi – 116000 , MPa – 800 15 %
S32750 / S32760 7.8 g/cm3 1350 °C (2460 °F) Psi – 80000 , MPa – 550 Psi – 116000 , MPa – 800 15 %

Applications & Operations

We at DC Engineering make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers. DC Engineering is one of the most trusted manufacturers and suppliers of fasteners and bolts which are applicable in various industries.

  • Gas Processing Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Food Processing Industries
  • Chemical Industries
  • Oil & Gas Industries
  • Fertilizers Industries
  • Sugar Industries






Experimentation & Testing

DC Engineering is known for its accurate and perfect dimensions. We at DC engineering thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.

  • Impact Analysis
  • Eddy Current Examining
  • Power Generation Industries
  • Hydrostatic Analysis
  • Prompt Test
  • Positive Material Recognition
  • Large-Scale Test
  • Pitting Protection Test


Packaging & Dispatching

DC Engineering uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:

  • Wooden Boxes
  • Wooden Crates
  • Wooden Pallets
  • Carton Boxes
  • Shrink-Wrapped
  • Bubble Wrap Packing Material
  • Laminated & Metallized Films
  • Wooden or Plastic Crates
