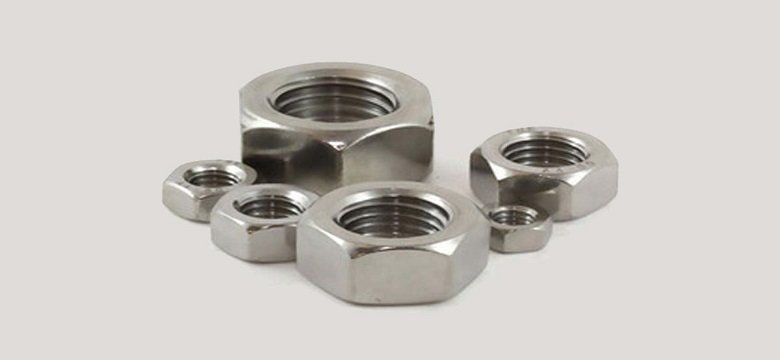

DC Engineering is a repetitive firm for producing and manufacturing Hastelloy C4/C22/C276 Nuts with quality features and attributes applicable across various industries. We offer an extensive range of Fasteners, which have maintained quality and quality range as a prime responsibility.
Hastelloy is the collection of corrosion-resistant alloys. C22, C4, and C276 grades belong to the same Hastelloy family and are identified as the premium alloy steel brand in the markets. Although the corrosion resistance of C22 Hastelloy Panel nuts is leaded compared to the corrosion resistance of C276 grade nuts. The highest proportion of chromium in C22 grade provides flexible corrosion resistance at room temperature and in oxidizing conditions. Hastelloy C4 is also a nickel-chromium-molybdenum alloy that offers good corrosion resistance even under chemical environments such as hydrochloric acids, sulfuric acids, and chlorides. C4 Hastelloy Wing nut is stabilized grade, which is often identified to be used in aggressive corrosion media. The stability in this condition represents that the material quality can be welded without the concern of sensitization. The properties of Hastelloy grade nuts are they are malleable, easy to form, and possess excellent resistance from corrosion like other nickel alloys. The high content of both molybdenum and chromium in similar composition into C276 Hastelloy Lag grade Nuts can help the grades to withstand high temperature and non-oxidizing acids. These Hastelloy grade nuts find various applications where corrosion resistance is highly needed.
Largest Inventory
Customer Support
On Time Deliveries
ISO 9001 : 2015
Specification :-
| Specification | ASTM B 574 / ASME SB 574 |
| Standard |
DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Hastelloy® Alloy C276 Stud Nuts length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hastelloy Alloy C276 Hex nuts |
| Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration |
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Nickel Alloy 200 Fasteners Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | - | NiCr21Mo14W | - |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
| Hastelloy B2 | 2.4617 | N10665 | NW 0665 | - | - | - |
| Hastelloy B3 | 2.4600 | N10675 | - | - | - | - |
| Hastelloy X | 2.4665 | N06002 | - | - | - | - |
Chemical Composition
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.5 max | Bal | 20 - 22.5 | 2 – 6 | 12.5 – 14.5 | 0.02 max |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| Hastelloy B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
| Hastelloy B3 | 0.01 max | 3.0 max | 0.10 max | - | 3.0 max | 65.0 min | 1.5 max | 1.5 max | 27.0-32.0 | - |
| Hastelloy X | 0.05-0.15 | 1.0 max | 1.0 max | - | 0.5-2.5 | Balance | 20.5-23.0 | 17.0-20.0 | 8.0-10.0 | - |
Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45% |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Hastelloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
| Hastelloy B3 | 9.22 g/cm3 | 1418 °C | 1000-2000 MPa | 350 MPa | 40% |
| Hastelloy X | 9.2 g/cm3 | 1370 °C (2500 °F) | Psi – 51,000, MPa – 350 | Psi -1,10,000, MPa -760 | 40 % |
Applications & Operations
We at DC Engineering make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers. DC Engineering is one of the most trusted manufacturers and suppliers of fasteners and bolts which are applicable in various industries.
- Gas Processing Industries
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Chemical Industries
- Oil & Gas Industries
- Fertilizers Industries
- Sugar Industries
Experimentation & Testing
DC Engineering is known for its accurate and perfect dimensions. We at DC engineering thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.
- Impact Analysis
- Eddy Current Examining
- Power Generation Industries
- Hydrostatic Analysis
- Prompt Test
- Positive Material Recognition
- Large-Scale Test
- Pitting Protection Test
Packaging & Dispatching
DC Engineering uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:
- Wooden Boxes
- Wooden Crates
- Wooden Pallets
- Carton Boxes
- Shrink-Wrapped
- Bubble Wrap Packing Material
- Laminated & Metallized Films
- Wooden or Plastic Crates
