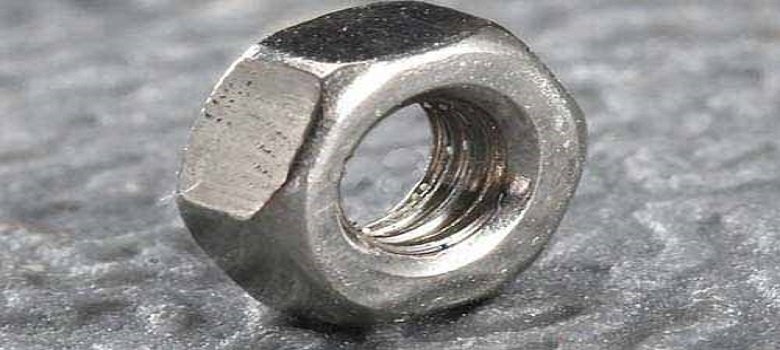

DC Engineering is private limited, is the notable manufacturer and suppliers of Monel 400/500 Nuts, which is remarkably known for providing good characteristics in several environments. We are regarded as high quality fasteners producers and always use quality material to manufacture these fasteners.
Monel 500 and K500 are both nickel-copper alloy grades which show pretty similar characteristics. Monel K500 is an age-hardenable alloy which is the re-developed version of 400 in terms of corrosion resistance and resistance from fatigue. K500 Monel Hex Nuts is copper-nickel alloy nuts and can be hardened by addition of two major effective elements that are aluminium and titanium. As compared to Monel 400 nuts, Monel K500 can be forward enhanced via cold working which gets done prior to the precipitation hardening. The high strength of the fasteners well maintained up to the temperature range of 1200 degree F. At the following temperature it becomes more flexible and durability reaches up to 400 degree F. The melting point of Monel K500 fasteners is ranges from 2400-2460 degree F, and in general spark resistant property is shown by Monel K500 alloy nuts. The non-magnetic property of 400 Monel Rivet Nuts is achieved at the temperature equals to or below than -200 degree F. However, Magnetic properties is obtainable from the cold working methods.
The application and industries who employ Monel 400/K500 is a lot including chemical industries, oil and industries, salt water equipment, acid processing plants, paper and pulp industries, and so on.
Largest Inventory
Customer Support
On Time Deliveries
ISO 9001 : 2015
Specification :-
| Specification | ASTM F 467 / ASME SF 467 |
| Standard |
DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Monel Monel® Alloy 400 Stud nuts length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Monel Alloy 400 Hex nuts |
| Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration |
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Nickel Alloy 200 Fasteners Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
| Monel K500 | 2.4375 | N05500 | - | - | - | - | - |
Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
Applications & Operations
We at DC Engineering make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers. DC Engineering is one of the most trusted manufacturers and suppliers of fasteners and bolts which are applicable in various industries.
- Gas Processing Industries
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Chemical Industries
- Oil & Gas Industries
- Fertilizers Industries
- Sugar Industries
Experimentation & Testing
DC Engineering is known for its accurate and perfect dimensions. We at DC engineering thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.
- Impact Analysis
- Eddy Current Examining
- Power Generation Industries
- Hydrostatic Analysis
- Prompt Test
- Positive Material Recognition
- Large-Scale Test
- Pitting Protection Test
Packaging & Dispatching
DC Engineering uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:
- Wooden Boxes
- Wooden Crates
- Wooden Pallets
- Carton Boxes
- Shrink-Wrapped
- Bubble Wrap Packing Material
- Laminated & Metallized Films
- Wooden or Plastic Crates
